T- Turbocharger / T- RH163 Turbine Housing For Marine Turbocharger Replacement Parts
T- / T- RH series exhaust gas turbocharger description:
T- /T- RH163 turbocharger casing's turbine housing (also called turbine casing) belongs to one part of T- / T- RH series exhaust gas turbocharger and which consists of mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. T-RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.
T- turbocharger includes:
| | T- RH Series | T- AT Series | T- RU Series |
| T- | T- RH133 | T- AT14 | T- RU110 |
| T- RH143 | | T- RU120 |
| T- RH163 | | |
| T- RH183 | | |
| T- RH203 | | |
T- / T- RH163 turbocharger turbine housing (turbine casing) description:
The turbine casing, bearing casing and compressor housing are made by cast iron.
A turbine housing (casing) includes a central aperture for containing a turbine blade assembly and directing exhaust gases past the turbine blades in a turbocharger. The turbocharger consists of a single stage impulse turbine connected to a centrifugal impeller via a shaft. The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

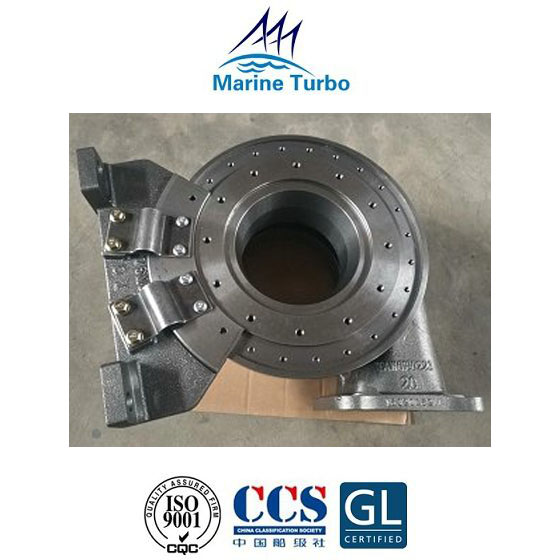

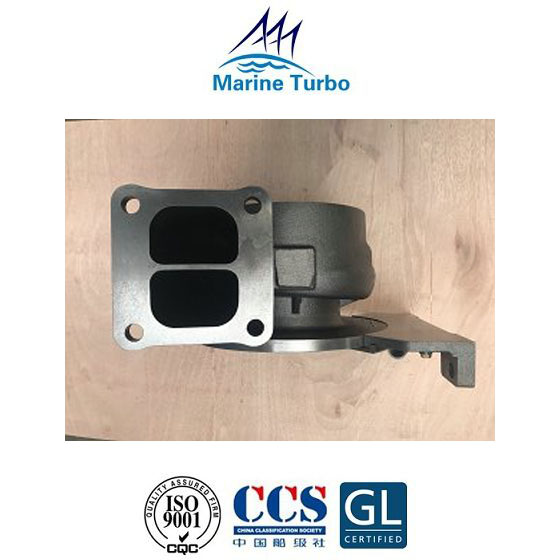

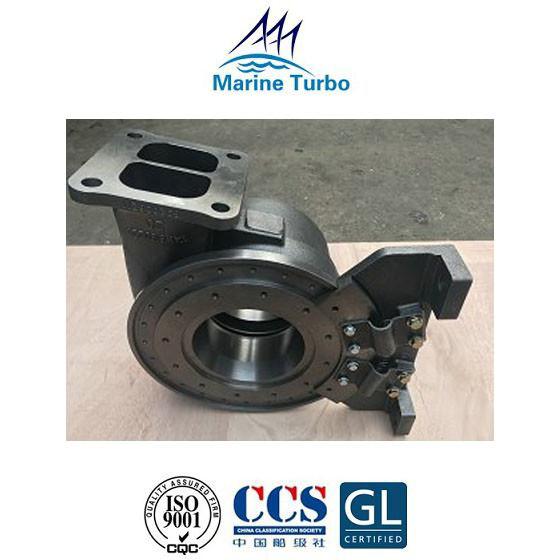

T- / T- RH163 turbocharger turbine housing (turbine casing) pictures:
Marine Turbo supply marine turbocharger replacement parts:
With over 20 years of ufacturing experience, Marine Turbo company supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc...
