T- / T- TCA series exhaust gas turbochargers description:

T-TCA55 Turbocharger Nozzle Ring is one part of T- / T- TCA series exhaust gas turbochargers, which were regarded as the upgraded technology of the previous successful T- NA series of turbochargers. The T- TCA series turbocharger is not only clearly increased in efficiency, but aslo substantially improved in reliability and service life. The T- TCA Series are developed for constant-pressure turbocharging, with which, the engine exhaust gases flow into a common exhaust ifold, accumulate there and flow with minor pressure fluctuations to the exhaust turbine.

The T- TCA series are designed as axial turbine and can be used in a very wide perforce range for the charging of two-stroke and four-stroke diesel and gas powered engines. Engine outputs are from 2,000 kW to 30,000kW per turbocharger and with easy-to-service or maintenance.

Applications:

T- TCA series exhaust gas turbocharger is widely used in Marine engine, Power engine and Industrial engine.

T- / T- TCA series turbocharger includes:

The function of T-TCA55 Turbocharger Nozzle Ring:

The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

• The nozzle ring need to bear the extremely high temperature and high pressure, so it's very crucial for its material selection.
• The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy.

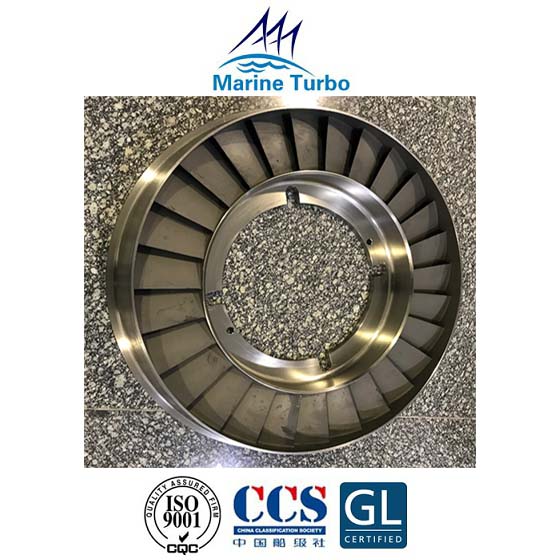

T- TCA55 Turbocharger Nozzle Ring picture:

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.

turbo nozzle ring

turbine diffuser

Diesel Powered Turbo Nozzle Ring
