T- Turbocharger / T- NR12/S Turbine Diffuser For Ship Engine Turbocharger

  • 1
  • 2

Brand Name : Marine Turbo

Model Number : T- NR12/S

Certification : ISO9001, CCS, or GL

Place of Origin : Jiangsu, China

MOQ : 1 pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 pcs / month

Delivery Time : 3-4 working days

Packaging Details : Carton box, wood case

Model : T- NR12/S

Product Name : Turbocharger Turbine diffuser, Marine turbocharger diffuser, marine turbo diffuser,

Size : Standard size, or as customer's request

Type : Diesel Engine Turbocharger

Fuel : Heavy Fuel Oil, Marine Diesel Oil, biofuel and gas operation

Engine type : Diesel, biofuel and gas engines

Engine power range : 450 kW - 5400kW

Turbine type : Radial flow

Pressure ration : Max. 4.5

Permiss. temp. : Max. 650°C

Quality : High Perforce, Top and High Level, Guaranteed

Warranty : 12 months

Application : Marine engine, Power engine and Industrial engine

Package : Wood case, carton box or according to require

Contact Now

T- Turbocharger / T- NR12/S Turbine Diffuser For Ship Engine Turbocharger

T- / T- NR series turbocharger description:

T- NR12/S turbocharger Turbine diffuser is one part for T- / T- NR series turbochargers, which were designed comparatively simply with a cast radial turbine, which is suitable for heavy fuel oil engines, marine diesel oil engines, biofuel and gas operation enginess. Products are available for a wide engine power range, from 450 kW to 5400kW per turbocharger and without compromise in reliability and perforce.

Applications:

T- NR series turbocharger is widely used in ship building, locomotive, land power station and petroleum drilling industries, extensively applicable to in-land and coastal transportation and fishing due to its high efficiency, small size, light weight, favorable maintainability and serviceability, adequate supply of spare parts.

T- / T- NR series turbocharger includes:

T- T- NR Series
T- NR12/S
T- NR14/S
T- NR15/R
T- NR17/S
T- NR20
T- NR20/R
T- NR20/S
T- NR24/R
T- NR24/S
T- NR26/R
T- NR29/S
T- NR34/R
T- NR34/S

T- / T- NR series marine turbocharger dimension and weight only for reference:

Type L(mm) W(mm) H(mm) Weight (kg)
T- NR12/S 858 402 432 155
T- NR15/R 715-724 500-520 525-672 200
T- NR20/R 900-960 662-692 700-730 400
T- NR20/S 1,165 715 678 350
T- NR24/S 1470 748 838 505

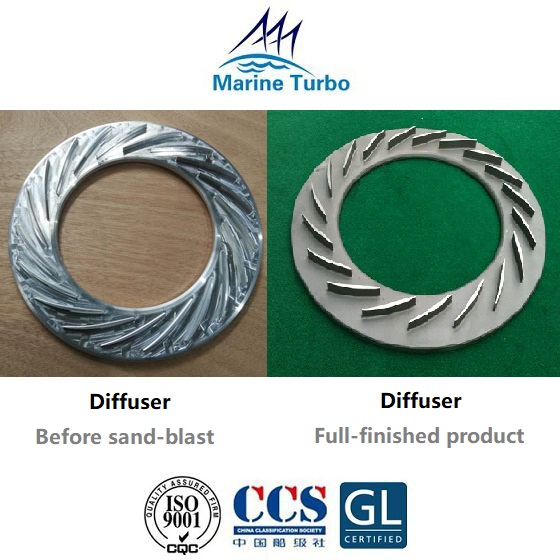

T- NR12S turbocharger turbine diffurser before sand blast and full finished:

T- Turbocharger / T- NR12/S Turbine Diffuser For Ship Engine Turbocharger

The function of turbocharger Turbine diffuser:

The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

The diffuser is mounted in the compressor side of the turbocharger in order to direct the air smoothly into volute casing and Convert kinetic energy to pressure energy inlet air.
