405mm Mixed Flow T-RH133 TC Complete Marine Turbocharger

Name: 405mm Mixed Flow TRH133 TC Complete Marine Turbocharger
Brand: Marine Turbo
Price: 1 USD

Quality 405mm Mixed Flow T-RH133 TC Complete Marine Turbocharger wholesale

Brand Name : Marine Turbo

Model Number : T-RH133

Certification : ISO; CCS; GL

Place of Origin : Jiangsu, China

MOQ : 1 pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 pcs / month

Delivery Time : 1-4 working days

Packaging Details : Carton box, wood case

Model : T- RH133

Product Name : Marine turbocharger, marine turbocharger complete, T/C complete, turbocharger assembly

New or Second-Hand : New marine turbocharger replacement

Size : Standard size, or as customer's request

Type1 : Exhaust gas turbocharger

Fuel : Diesel

Engine type : Diesel engine

Turbine type : mixed flow turbine

Quality : High Perforce, Top and High Level, Guaranteed

Contact Now

T- / T- RH133 Marine Turbocharger TC Complete in Automotive And Industrial Engines

T- /T- RH133 series marine turbocharger complete:

T- RH133 Marine Turbocharger belongs to T- /T- RH series exhaust gas turbocharger. T- RH consists of mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. T- RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

T- / T- RH series turbochargers includes:

	T- RH Series	T- AT Series	T- RU Series
T-	T- RH133	T- AT14	T- RU110
	T- RH143		T- RU120
	T- RH163
	T- RH183
	T- RH203

T- / T- RH series marine turbocharger complete dimensions and weight:

	Type	Overall Dimension(mm)					Weight
T-		A	B	C	D	E	(Kg)
	T- RH133	765	405	284	323	393	54
	T- RH143	908	456	316	361	458	146
	T- RH163	981	537	362	426	533	159
	T- RH183	1188	655	443	518	656	289

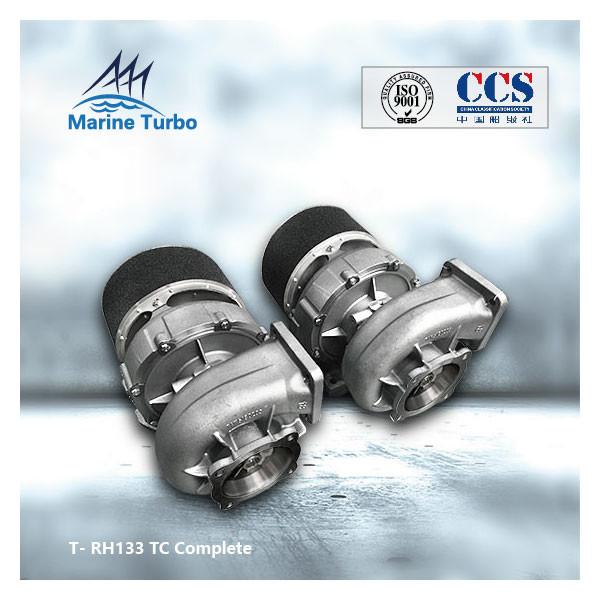

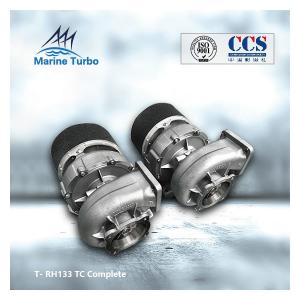

T- RH133 series marine turbocharger complete picture:
