RH183 Turbocharger Bearing Housing Without Foot

Brand Name : Marine Turbo

Model Number : RH183

Certification : ISO; CCS; GL

Place of Origin : Jiangsu, China

MOQ : 1 pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 pcs / month

Delivery Time : 1-4 working days

Packaging Details : Carton box, wood case

Product Name : Turbo Bearing Housing, Turbocharger Bearing Pedestals, Marine Turbo Bearing Casing

Model : / RH183 Bearing Casing

Type : Marine Turbocharger

Turbine Type : Single Stage Turbine

Quality : High Perforce, Top And High Level, Guaranteed

Warranly : 12 Month

High Light : turbo casing, turbine housing

Contact Now

Turbocharger / RH183 Turbocharger Bearing Casing Without Foot For Marine Turbo Spare Parts Replacement 12 Months Warranty

RH183 Marine Turbocharger series marine turbocharger:

RH183 Marine Turbocharger belongs to /RH series exhaust gas turbocharger. Itconsists of mixed flow turbine and radial flow compressor. This series of turbocharger can match to high-speed diesel engine. Two types of journal bearing: semi-floating type and full-floating type, in order to prevent the shaft to move. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. Excellent thermal resistance, air and oil sealing perforce and stable bearing system ensure the / RH Series marine turbochargers' reliability and long service lifetime. RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

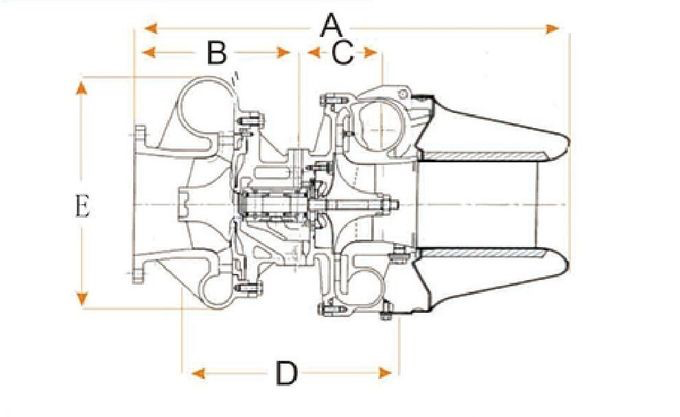

T- / T- RH series marine turbocharger dimension and weight only for reference:

Model Overall Dimension(mm) Weight
　 A B C D E 　Kg
RH133 765 405 284 323 393 54
RH143 908 456 316 361 458 146
RH163 981 537 362 426 533 159
RH183 1188 655 443 518 656 289

RH183 Turbocharger Bearing Housing Without Foot

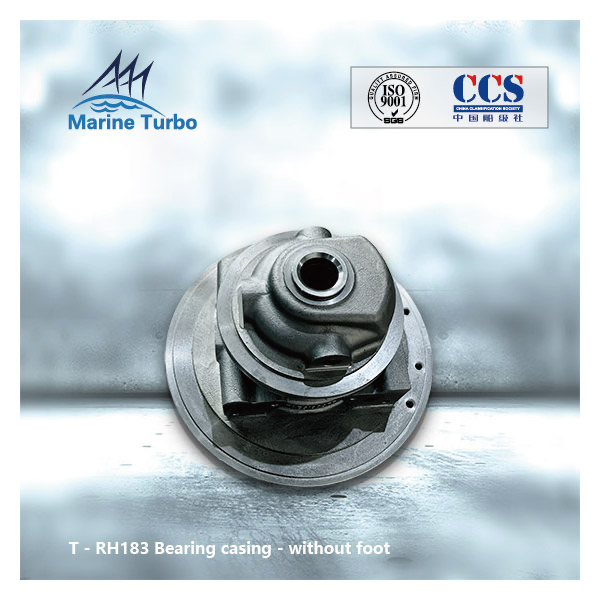

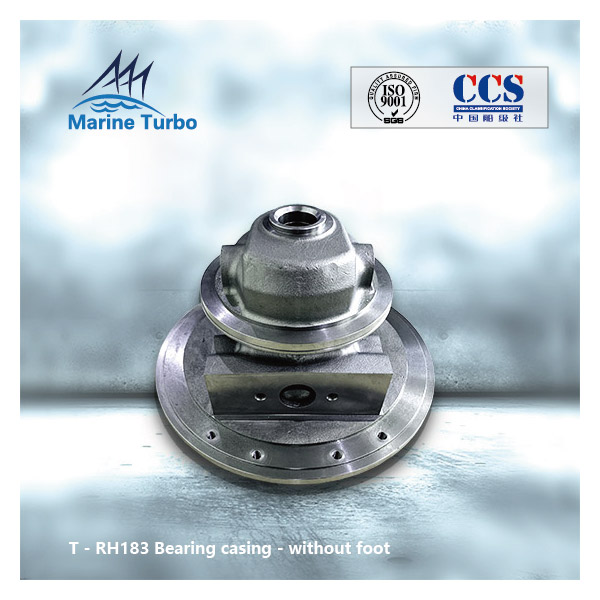

/ RH183 turbocharger bearing casing (bearing housing or bearing pedestal) pictures:

RH183 Turbocharger Bearing Housing Without Foot

RH183 Turbocharger Bearing Housing Without Foot
