CCS RH183 Marine Exhaust Gas Turbocharger

  • 1
  • 2
  • 3

Brand Name : Marine Turbo

Model Number : RH183

Certification : ISO; CCS; GL

Place of Origin : Jiangsu, China

MOQ : 1 pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 pcs / month

Delivery Time : 1-4 working days

Packaging Details : Carton box, wood case

Product Name : Marine turbocharger, marine turbocharger complete, T/C complete, turbocharger assembly

Model : RH183

New or Second-Hand : New marine turbocharger replacement

Size : Standard size, or as customer's request

Type1 : Exhaust gas turbocharger

Engine type : Diesel engine

Turbine type : single Stage Turbine

Quality : High Perforce, Top and High Level, Guaranteed

Contact Now

RH series TC Complete Marine Turbocharger/High-speed RH183

/RH183 series marine turbocharger complete:

RH183 Marine Turbocharger belongs to /RH series exhaust gas turbocharger. RH consists of mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

/ RH series turbochargers includes:

RH Series AT Series RU Series
RH133 AT14 RU110
RH143 　 RU120
RH163 　 　
RH183 　 　
RH203 　 　

/ RH series marine turbocharger complete dimensions and weight:

Type Overall Dimension(mm) Weight
　 A B C D E (Kg)
RH133 765 405 284 323 393 54
RH143 908 456 316 361 458 146
RH163 981 537 362 426 533 159
RH183 1188 655 443 518 656 289

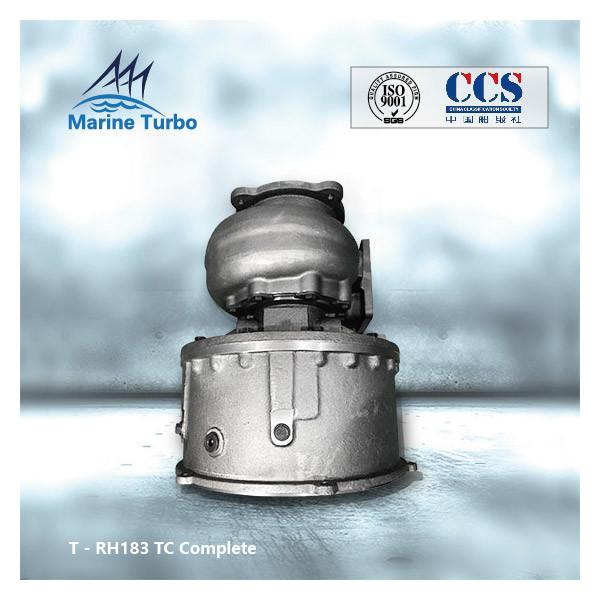

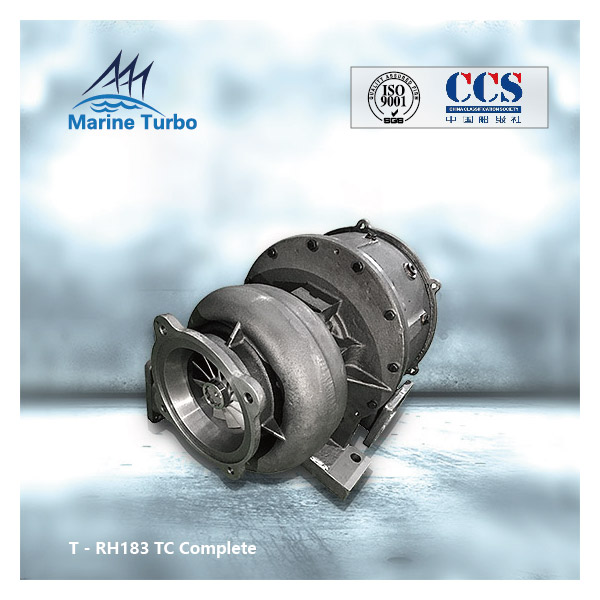

RH183 series marine turbocharger complete picture:

CCS RH183 Marine Exhaust Gas Turbocharger
