Diesel Fuel Turbine Housing Compressor Housing Mixed Flow Type RR181

Exhaust Gas Turbocharger RR181 Turbine Housing And Compressor Housing Mixed-Flow Turbine

/ RR series turbocharger description:

• RR181 turbine housing (also called turbine casing) belongs to / RR series turbocharger.
• The RR series turbocharger is a lightweight, low-cost turbocharger with robust design, offering high efficiency, high gas-inlet temperature capability and good compressor characteristics.
• The RR is designed for an output range of about 500 kW to 1,800 kW.
• RR series turbochargers are ideal for high-speed diesel engines and gas engines which developed for higher outputs and lower engine fuel consumption.
• It's used on diesel marine engine, rail as well as earthmoving and mining equipment.

/ RR turbocharger series include:

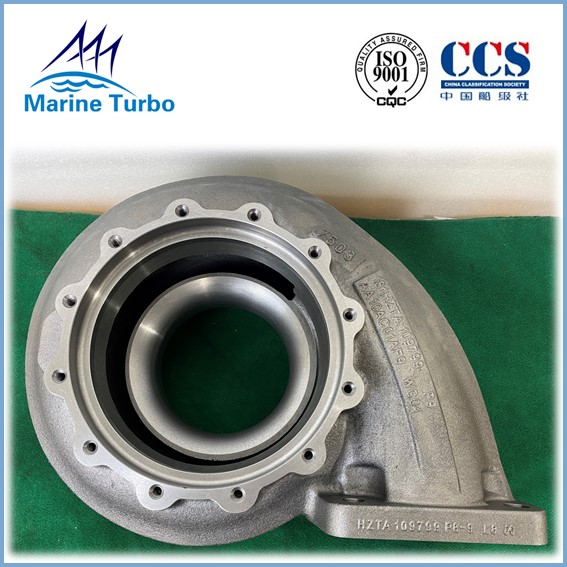

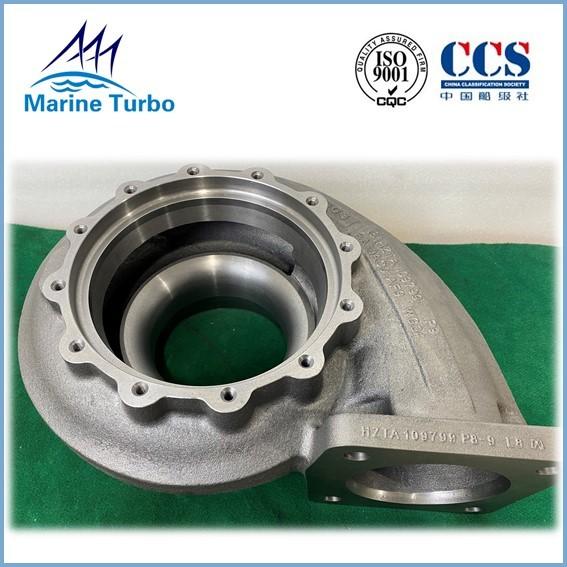

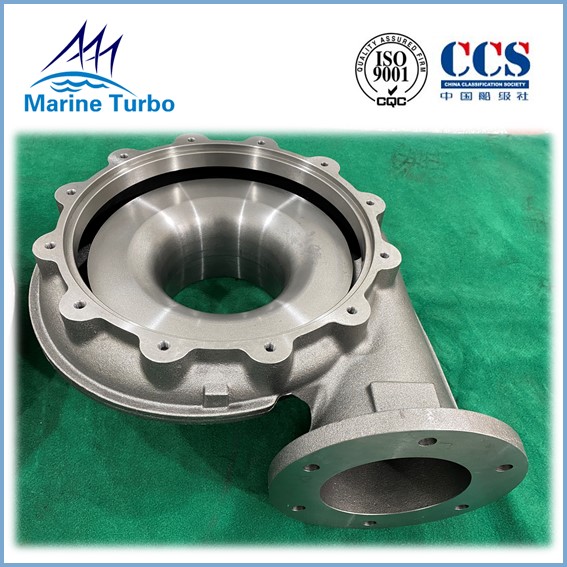

More picture for / RR 181 turbine housing and compressor housing:

The definition of turbine housing:

A turbine housing (casing) includes a central aperture for containing a turbine blade assembly and directing exhaust gases past the turbine blades in a turbocharger. The turbocharger consists of a single stage impulse turbine connected to a centrifugal impeller via a shaft. The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

Marine Turbo Introduction:

With over 20 years of ufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....

Marine Turbo also can provide product customization services to meet the personalized needs of customers. According to the sample or drawings provided by customers, Marine Turbo can process and ufacture the corresponding products in order to provide customers with sound-quality products at low cost.

Diesel Fuel Turbocharger Casing

Mixed Flow Turbine Housing

Diesel Fuel Turbine Housing

Diesel Fuel Turbine Housing Compressor Housing Mixed Flow Type RR181 Images
