Radial Flow Type RU110 Complete Turbocharger For Diesel Engine

Radial Flow Type Of Turbine RU110 Complete Turbocharger For Diesel Engine

Description of RU110 Complete Turbocharger

• RU110 complete turbocharger is radial flow type of turbine, in which exhaust gas from the engine passes through the nozzle of the turbine casing, is accelerated and blown to the turbine impeller and provides the turbine shaft with turning effort.
• RU110 turbocharger is lubricated by the engine external lube oil system.
• RU110 turbocharger blower impeller fitted to the turbine shaft receives the turing force, inhales air, compersses and delivers it to the cylinders.
• RU110 turbocharger blower side sealing method: in order to prevent leak of feed air and oil, the back (seal plate) of the blower impeller is of a dual wall construction and the seal ring provided therein.
• RU110 turbocharger thrust bearing: due to thrust is constantly applied to the turbine shaft, the thrust bearing is provided to prevent move of the shaft.
• / RU110 complete turbocharger is widly used in marine engine and generator, and also consturction machine.

/ RU Series includes:

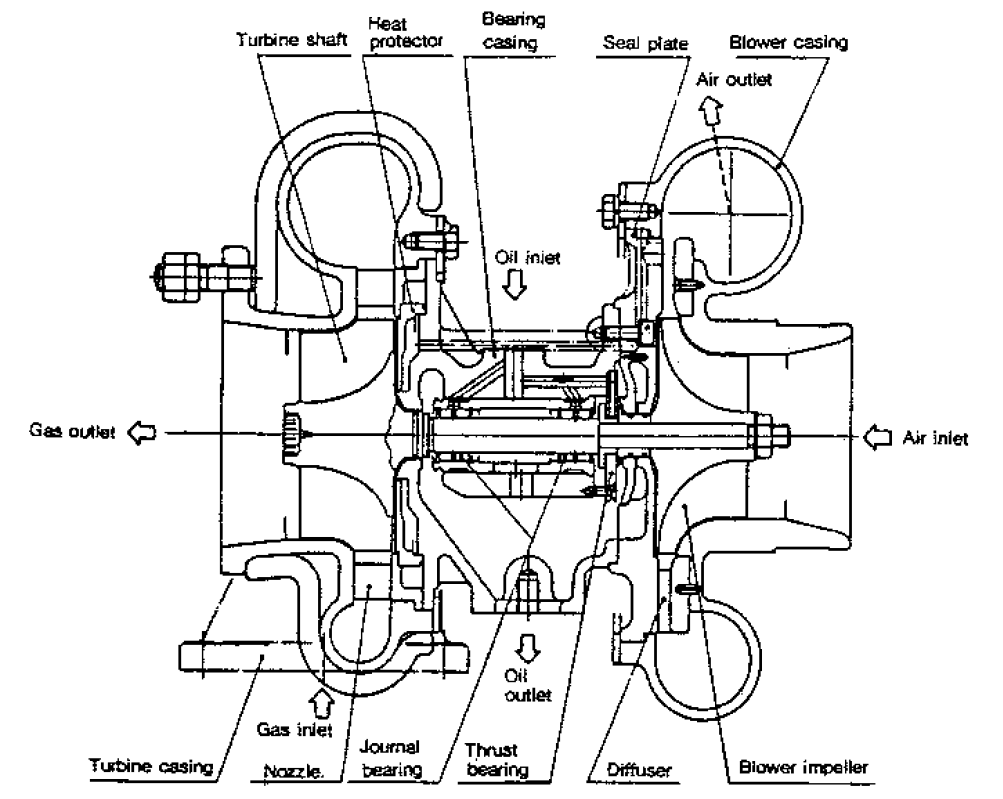

The structure of / RU110 complete turbocharger:

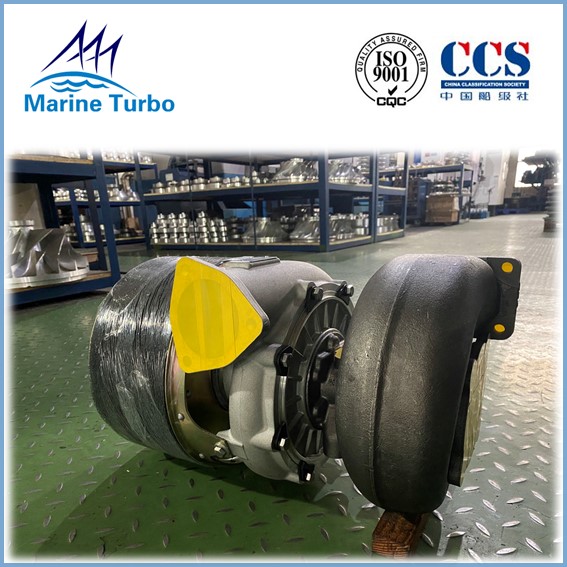

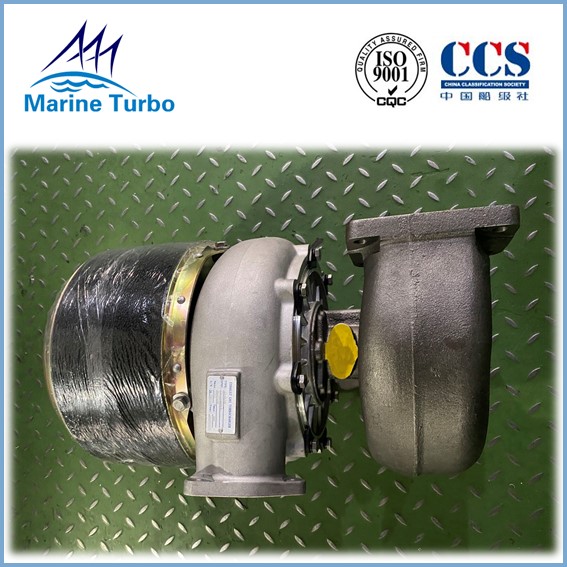

More photos for RU110 complete turbocharger:

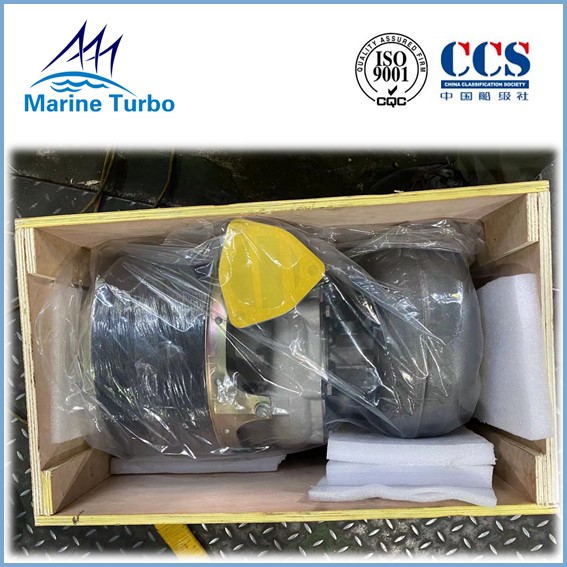

The RU110 complete turbocharger is packed in wooden case as following photo:

Q&A:

Q1. What is the origin of country?

A: The complete TC is made by our factory in China.

Q2. How can I order it?

A: Before you issue the order, please send the nameplate or spec to us for checking. Then we'll make the quote for you before you send the PO to us.

Q3. Can you supply other type of turbocharger complete for brand?

A: Yes, we can supply the turbocharger complete replacement for RH133, RH143, RH163, RH183 and AT14.

Q4. What is the warranty?

12 months for fixed parts; 6 months for rotary parts.

Q5. How y years of ufacturing experience have you had on marine turbocharger field?

A: More than 20 years. Our factory was established in 1999.
