T- TPS48 Turbo Charger Cartridge Assembly For Single Staged Turbocharger

T- TPS48 Turbo Charger Cartridge Assembly For Single Staged Turbocharger Components

T- TPS series marine turbocharger design features:

T- TPS48 Turbo Charger Cartridge Assembly belongs to one part of T- TPS series Marine turbocharger and it has the features as below:

1. It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
2. it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
3. cooled & uncooled bearing casing design.
4. The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
5. The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
6. The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
7. It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

/ TPS turbocharger types include:

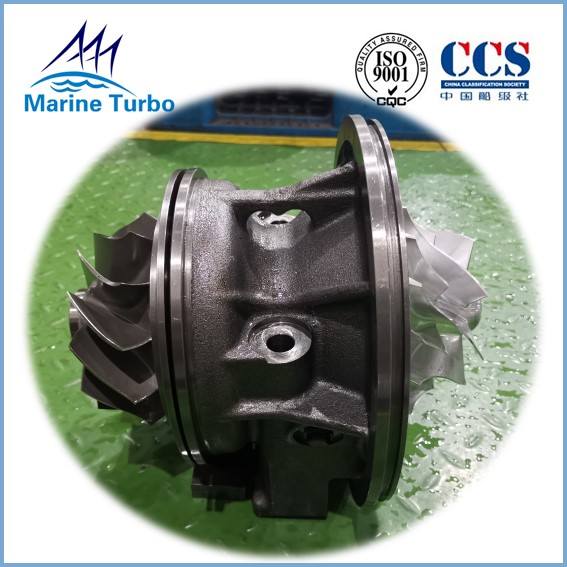

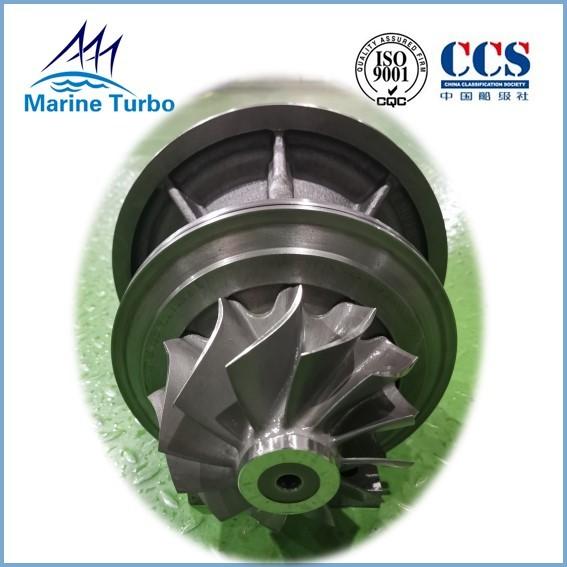

More photo for T- TPS48 Turbo Charger Cartridge Assembly:

Q&A:

Q1. What is the origin of country?

A: The alternative complete TC for atermarket is made by our factory in China.

Q2. How can I order it?

A: Before you issue the order, please send the nameplate or spec to us for checking. Then we'll make the quote for you before you send the PO to us.

Q3. What is the warranty?

A: 12 months for fixed parts; 6 months for rotary parts.

Q4. How y years of ufacturing experience have you had on marine turbocharger field?

A: More than 20 years. Our factory was established in 1999.

Turbo Charger Cartridge

Single Staged Turbo Charger Cartridge

Single Stage Turbocharger Cartridge

T- TPS48 Turbo Charger Cartridge Assembly For Single Staged Turbocharger Images
