T- TPS48 Turbocharger Rotor Assembly For Diesel Turbo Replacement Parts

T- TPS48 Turbocharger Rotor Assembly For Diesel Turbo Replacement Parts

T- TPS series marine turbocharger design features:

T- TPS48 turbocharger rotor assembly (rotor complete) belongs to one part of TPS series Marine turbocharger and it has the features as below:

1. It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
2. it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
3. cooled & uncooled bearing casing design..
4. The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
5. It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- TPS series Marine turbocharger dimension and weight only for reference:

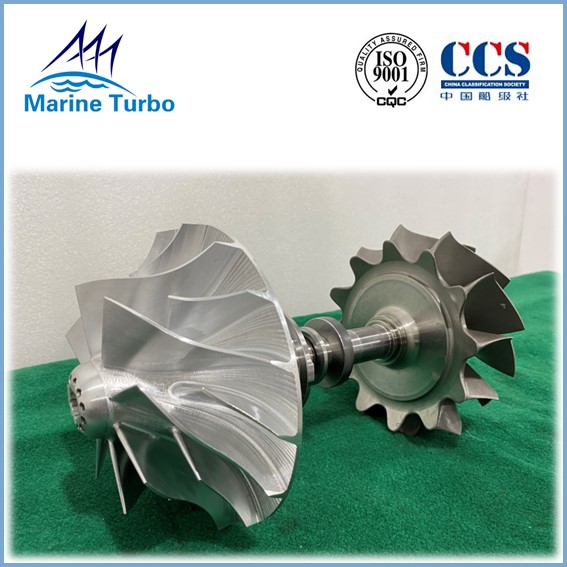

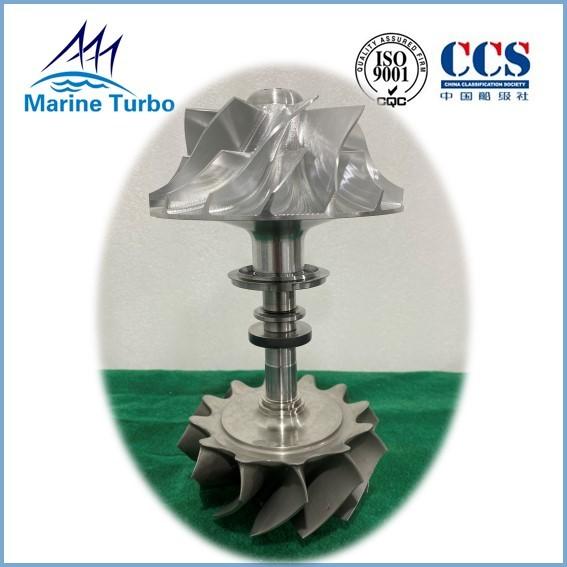

More photo for T- TPS48 Turbocharger Rotor Assembly

Marine Turbo supply marine turbocharger replacement parts:

With over 20 years of ufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....

TPS48 Turbocharger Rotor Assembly

Diesel Turbocharger Rotor Assembly

Aluminum Turbocharger Rotor Assembly

T- TPS48 Turbocharger Rotor Assembly For Diesel Turbo Replacement Parts Images
