T- RR181 Turbo Charger Cartridge Assy For Mixed-Flow Turbocharger Components
/ RR series turbocharger description:
- RR181 Turbo Charger Cartridge Assy belongs to / RR series turbocharger.
- The RR series turbocharger is a light weight, low-cost turbocharger with robust design, offering high efficiency, high gas-inlet temperature capability and good compressor characteristics.
- The RR is designed for an output range of about 500 kW to 1,800 kW.
- RR series turbochargers are ideal for high-speed diesel engines and gas engines which developed for higher outputs and lower engine fuel consumption.
- It's used on diesel marine engine, rail as well as earthmoving and mining equipment.
RR181 turbocharger dimensions for referece only:
| RR Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | Weight (kg)* |
| RR181 | 284.5 | 527.5 | 488 | 443 | 148 | 170.5 | 258 | 170.5 | 197.5 | 184 |
Note: *without filter silencer/suction branch and without cooling water

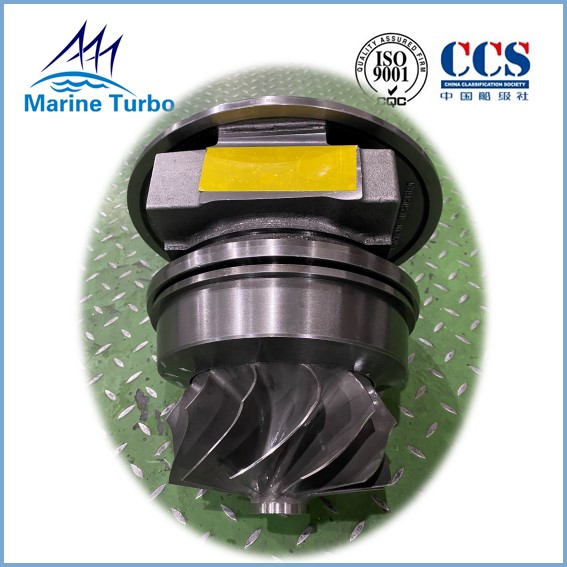

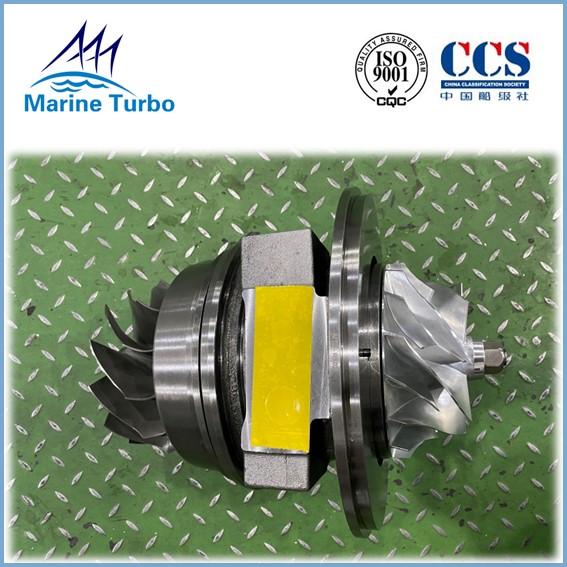

More photos for T- RR181 Turbo Charger Cartridge Assy:
Q&A:
Q1. Should we replace the whole unit when the turbochargers fail?
A: The answer is definitely no. Usually the core components of the turbochargers are well protected by the turbo cartridges, so the turbocharger repair will become much easier when only replacing the turbo cartridge.
Q2. Can you supply turbocharger complete for T- RR181?
A: Yes, we can. You can send the nameplate or spec to us when you send the inquiry to us, then we can check the stock availability for you.
Q3. Can you supply other type of turbocharger parts aftermarket for RR series?
A: Yes, we can supply the turbocharger parts replacement for T- RR151, T- RR181, T- RR221.
Q4. What is the warranty?
A:12 months for fixed parts; 6 months for rotary parts.
Q5. How y years of ufacturing experience have you had on marine turbocharger field?
A: Our factory has more than 20 years of ufacturing experience for marine turbocharger parts, and the parts supplied by our factory are well qualified to ensure the high perforce and durability.
